AINEGY PV Storage EV Charging Product Category

PV Storage EV Charging Systems

Integrated PV, battery storage and EV charging systems for charging stations, commercial sites, industrial parks and high-power charging applications.

AINEGY PV storage EV charging systems combine photovoltaic input, battery energy storage, EV charging output, grid input and EMS control into project-based configurations. These systems can be used as PV storage charging integrated systems or PV storage charging integrated cabins for solar-powered EV charging stations, commercial parking lots, industrial charging sites and weak-grid charging scenarios.

View Product RangeGet a Quote
AINEGY PV storage EV charging system
PV + StorageSolar input and battery storage for charging applications.
EV ChargingConfigured for DC fast charging and project charging needs.
EMS ControlCoordinated control for PV, battery, grid and charging output.

Typical Applications

PV storage EV charging systems are selected for sites where charging demand, PV generation, battery storage and grid capacity need to be coordinated together.

EV Charging StationsSupports charging sites requiring PV, battery storage and DC fast charging integration.
Commercial Parking LotsSuitable for malls, office parks, hotels and public parking facilities with EV charging demand.
Industrial Park ChargingSupports fleet charging, employee charging and industrial site charging applications.
Weak-Grid Charging SitesBattery storage helps support charging power where grid capacity is limited or unstable.

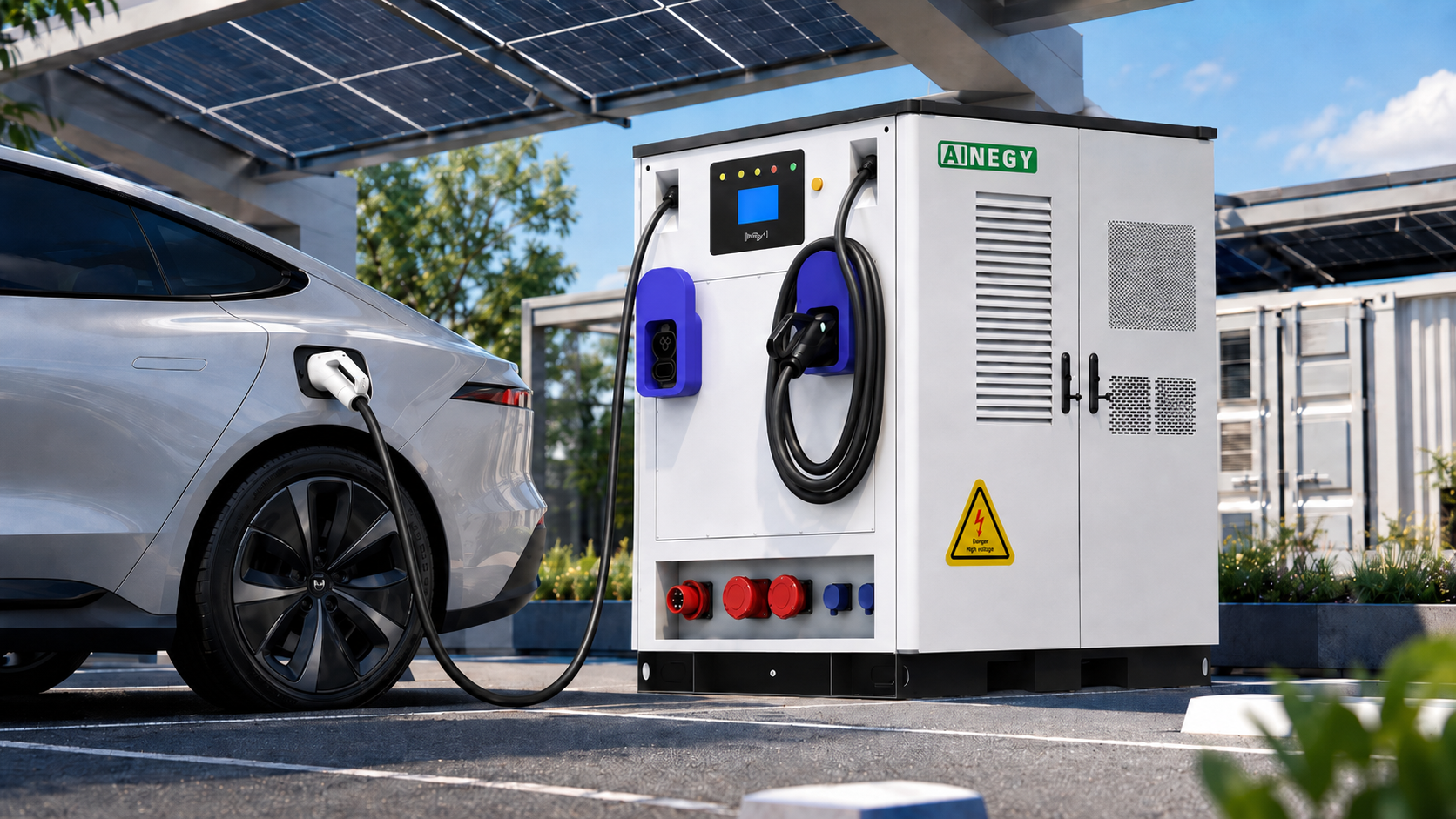

PV storage EV charging system application image

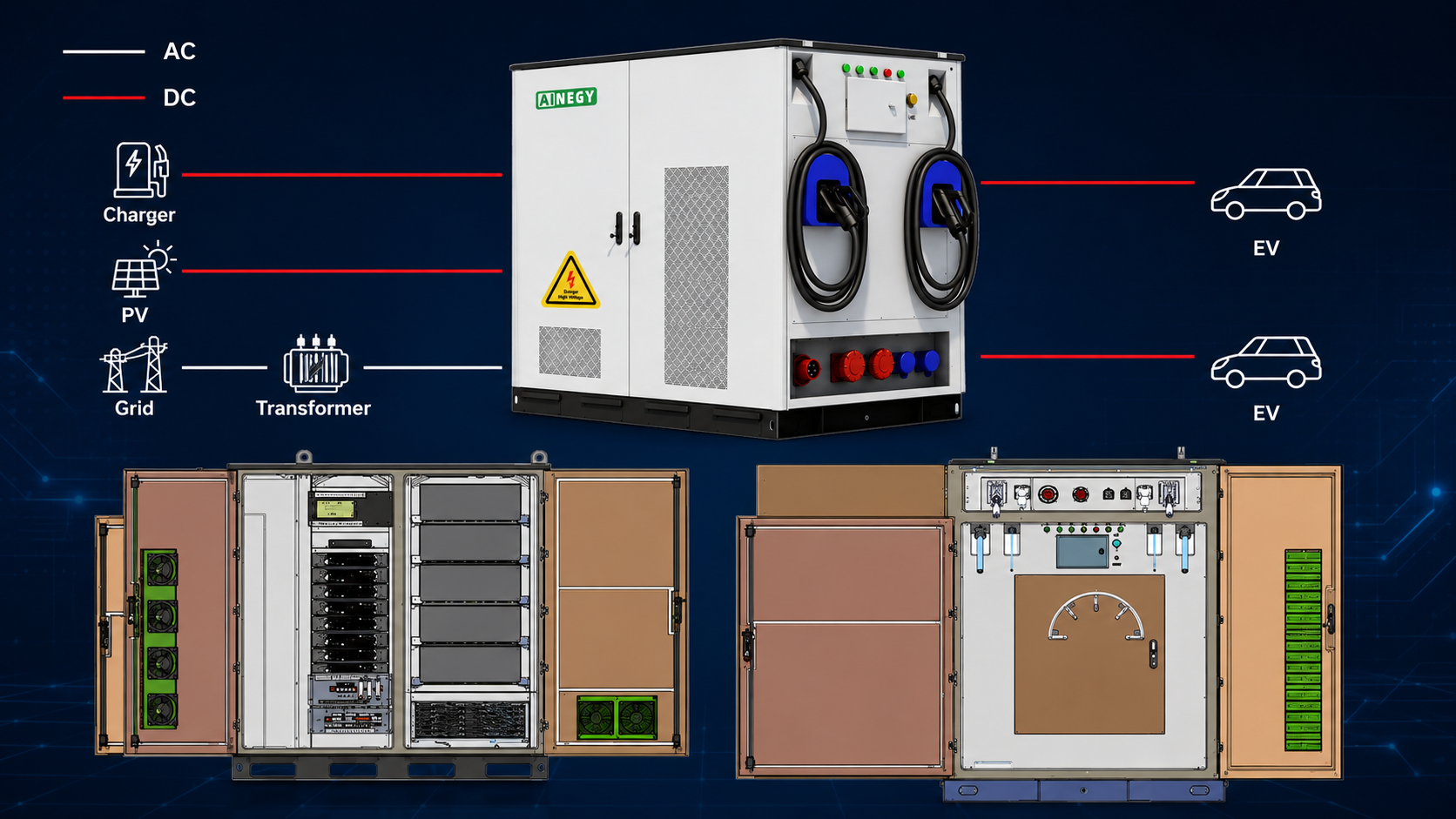

PV battery storage EV charging system integration image

System Integration Logic

A PV storage charging integrated system is not only an EV charger. It requires coordinated design across PV input, battery storage, charging output, grid input, EMS control and safety protection.

PV InputPhotovoltaic input can be configured according to site solar resources and project requirements.
Battery StorageBattery capacity supports energy buffering, peak reduction and charging power support.
EV Charging OutputDC charging power and charging gun configuration are matched to site charging demand.
Grid InputGrid input supports energy supplement and stable operation when PV or battery output is insufficient.
EMS ControlEnergy management coordinates PV, battery, grid and charging output operation.
Safety ProtectionSystem protection design supports project operation, equipment safety and charging reliability.

Configuration Items

The final PV storage EV charging system configuration depends on battery capacity, DC charging power, PV input, grid input, charging standard, number of charging guns and project operation strategy.

Battery CapacityConfigured by product model and project needs, such as 87kWh, 122kWh, 162kWh or 265kWh.
DC Charging PowerTypical charging power options may include 80kW, 120kW, 160kW or 250kW according to configuration.
PV InputPV input is configured according to site solar resources, roof or carport conditions and system design.
Grid InputGrid input configuration supports charging operation, battery supplement and site power management.
Charging GunsSingle-gun or dual-gun configuration can be selected according to charging site requirements.
Charging StandardsCharging interface support may include GB/T, CCS2, CCS1 or CHAdeMO according to project market.

Engineering & Project Support

AINEGY supports PV storage charging project configuration from requirement review to system matching, integration testing and documentation support.

Requirement ReviewConfirm charging power, PV input, battery capacity, grid condition and destination market.
System MatchingMatch PV input, battery storage, charging module, EMS control and protection design.
Integrated TestingSupport testing and communication for PV, battery, charging output and grid-side operation.
Documentation SupportSupport project documentation, product configuration communication and delivery requirements.

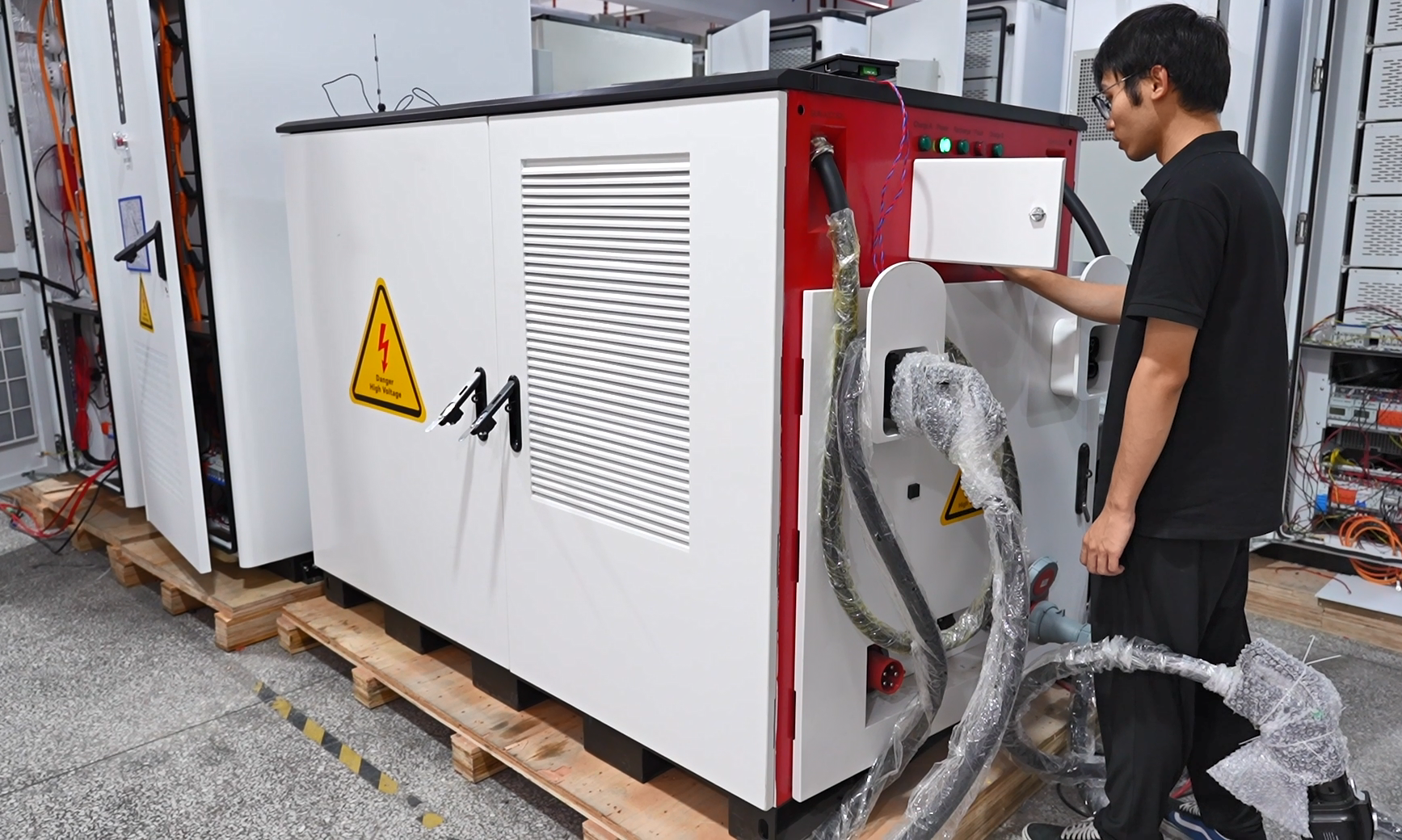

PV storage charging engineering and project support image

Related Solutions

PV storage EV charging products can be configured for different project scenarios. Related solution pages help customers select by application.

Solar-Powered EV Charging SolutionFor charging sites that combine photovoltaic generation, energy storage and EV charging output.Commercial Charging Station SolutionFor parking lots, commercial buildings and public charging locations requiring battery-supported charging.Industrial Park Charging SolutionFor industrial sites, fleet charging and PV-storage-charging project applications.

FAQ

Common questions about PV storage EV charging systems, battery-integrated fast charging and project configuration.

What is a PV storage EV charging system?It is an integrated system that combines photovoltaic input, battery storage, EV charging output, grid input and EMS control for charging station or commercial site applications.
Why add battery storage to EV charging?Battery storage can help support charging power, reduce grid-side pressure, improve PV utilization and support charging sites with limited grid capacity.
How should I choose the system configuration?Selection depends on required charging power, battery capacity, PV input, grid condition, charging standards, number of charging guns and destination market requirements.

Need a PV Storage EV Charging System for Your Project?

Tell us your charging power, battery capacity, PV input, grid condition, charging standard and project location. AINEGY will help match a suitable PV storage EV charging system configuration.
