AINEGY 1–2kWh LiFePO4 Portable Power Station
Portable all-in-one power for selected home backup, camping, mobile work and small electrical equipment.
The AINEGY portable power station combines LiFePO4 battery storage, 230Vac pure sine wave output, grid charging and MPPT solar charging in one compact unit. Choose the 1kWh/500W model for lighter portable power needs or the 2kWh/1000W model for greater energy capacity and higher compatible load power.
Portable Battery Power for Home, Outdoor and Professional Use
A portable power station combines rechargeable battery storage, power conversion, charging control and output interfaces in one movable enclosure. It stores energy from the grid or compatible solar panels and supplies connected devices through AC and USB outputs.
Explore the wider AINEGY Portable Power Stations range for other capacity and output options.
1kWh or 2kWh LiFePO4 Capacity
Select the battery-energy level around expected load power, operating time and portability requirements.
500W or 1000W Pure Sine Wave Output
Supply compatible 230Vac devices while keeping the total continuous load within the selected model rating.
Built-In MPPT Charging
Connect a compatible PV source within the specified voltage and current limits for portable solar recharging.
AC, USB and PV Connections
Universal AC output, USB output and MC4 PV input are integrated into the product interface system.
AINEGY Engineering and Quality Support
Portable energy storage performance depends on battery integration, inverter output, charging control, interface matching, enclosure design and product-level validation.
Years of BMS / EMS Technology Accumulation
Long-term engineering experience across lithium battery management and energy storage control.
R&D Team Members
Technical development across battery systems, inverters, charging control and integrated storage products.
Countries and Regions
International product and project experience across different power environments and application needs.
Cumulative Battery Shipment
Battery manufacturing and integration experience across multiple energy storage product categories.
LiFePO4 Storage in One Enclosure
Battery cells, power conversion and charging interfaces are integrated into one portable product platform.
Match Input and Output Requirements
PV voltage, PV current, AC source, connected load and port requirements should be checked before configuration.
Choose Capacity and Output Together
Battery energy determines stored capacity, while inverter rating limits the compatible continuous load power.
1–2kWh Portable Power Station Technical Specifications
Electrical ratings, charging limits and output capabilities should be reviewed together when matching solar panels and connected devices.
| Item | 1kWh + 500W | 2kWh + 1000W |
|---|---|---|
| Model | IYP-1K1A-500F1-A1 | IYP-2K1A-1KF1-A1 |
| Battery | ||
| Battery Type | LiFePO4 Battery | LiFePO4 Battery |
| Battery Energy | 1kWh | 2kWh |
| Nominal Voltage | 3.2V | 6.4V |
| Rated Capacity | 314Ah | 314Ah |
| Voltage Range | 3.0–3.65V | 6.0–7.3V |
| PV Input | ||
| Maximum PV Power | 300W | 500W |
| MPPT Voltage Range | 11–55V | 12–60V |
| Maximum PV Input Current | 10A | 15A |
| AC Input | ||
| Rated AC Voltage | 230Vac | 230Vac |
| Input Voltage Range | 90–280Vac ±5Vac | 90–280Vac ±5Vac |
| Frequency Range | 45–65Hz | 45–65Hz |
| AC Output | ||
| Rated Power | 500W | 1000W |
| AC Voltage | 230Vac ±5Vac | 230Vac ±5Vac |
| AC Frequency | 50Hz ±5% | 50Hz ±5% |
| Waveform | Pure sine wave output | Pure sine wave output |
| DC Output and Ports | ||
| USB-A1 Output | USB 5V 1A | USB 5V 1A |
| AC Output Port | Universal Socket | Universal Socket |
| AC Input Port | Three-Prong Triangular Socket | Three-Prong Triangular Socket |
| PV Port | PV MC4 | PV MC4 |
| General Parameters | ||
| Operating Temperature | -10°C to 40°C | -10°C to 40°C |
| Storage Temperature | -15°C to 60°C | -15°C to 60°C |
| Altitude | ≤3000m | ≤3000m |
| Dimensions | 310 × 360 × 151mm | 350 × 270 × 241mm |
| Approximate Weight | About 15kg | About 20kg |
Load Information
- Continuous operating power
- Startup or surge requirement
- Number of simultaneous devices
- Required operating time
Solar Panel Data
- Open-circuit voltage
- Maximum-power voltage
- Operating current
- MC4 connection arrangement
Charging Environment
- Available AC voltage
- Grid frequency
- Indoor or outdoor use conditions
- Ambient temperature and altitude
Interface Requirements
- AC socket requirement
- USB load requirement
- Type-C rating requirement
- Regional plug configuration
AC and MPPT Solar Charging
Two recharge paths allow the portable battery to receive energy from a compatible 230Vac source or a correctly matched photovoltaic source.
230Vac Input with a Wide Stated Range
Both models specify a rated AC input of 230Vac, an input range of 90–280Vac ±5Vac and a frequency range of 45–65Hz.
Up to 300W PV with 11–55V MPPT
The 1kWh model accepts up to 10A PV input through an MC4 interface when the connected array remains within the stated limits.
Up to 500W PV with 12–60V MPPT
The 2kWh model accepts up to 15A PV input through the MC4 interface when the array is correctly matched.
500–1000W Pure Sine Wave AC Output
The integrated inverter provides 230Vac pure sine wave output for compatible devices, with a rated frequency of 50Hz ±5%.
1kWh Model Rated Output
Designed for connected loads whose total continuous operating power remains within 500W.
2kWh Model Rated Output
Supports compatible devices with combined continuous power within the 1000W rating.
Universal AC Output
Both variants use a universal AC output socket in the stated product configuration.
Inverter Output Waveform
Equipment selection must still account for startup demand and device-specific electrical requirements.
Integrated AC, USB and Solar Interfaces
The enclosure brings battery charging and device output connections together in one portable interface panel.
Universal Socket
Connect compatible 230Vac loads while keeping total continuous power within the selected model rating.
Three-Prong Charging Socket
Use the configured AC input connection with a compatible source inside the stated voltage and frequency range.
MC4 Solar Connection
Connect a properly matched solar source according to the model's MPPT range and input-current limit.
USB-A1 5V 1A
USB-2 and Type-C are shown on the interface panel, while their detailed ratings require confirmation in the final specification.
Power Compatible Devices Within the Rated Output
Device compatibility depends on continuous operating power, startup demand, total simultaneous load and the electrical requirements of the connected equipment.
Lighting, Routers, Fans and Selected Electronics
Suitable where the combined load remains within the model rating and startup demand is compatible.
Laptops, Displays and Communication Equipment
Support portable workstations and compatible professional electronics through AC or USB outputs.
Camping Lights, Cameras and Small Equipment
Provide rechargeable portable energy for selected outdoor devices without making a whole-site power claim.

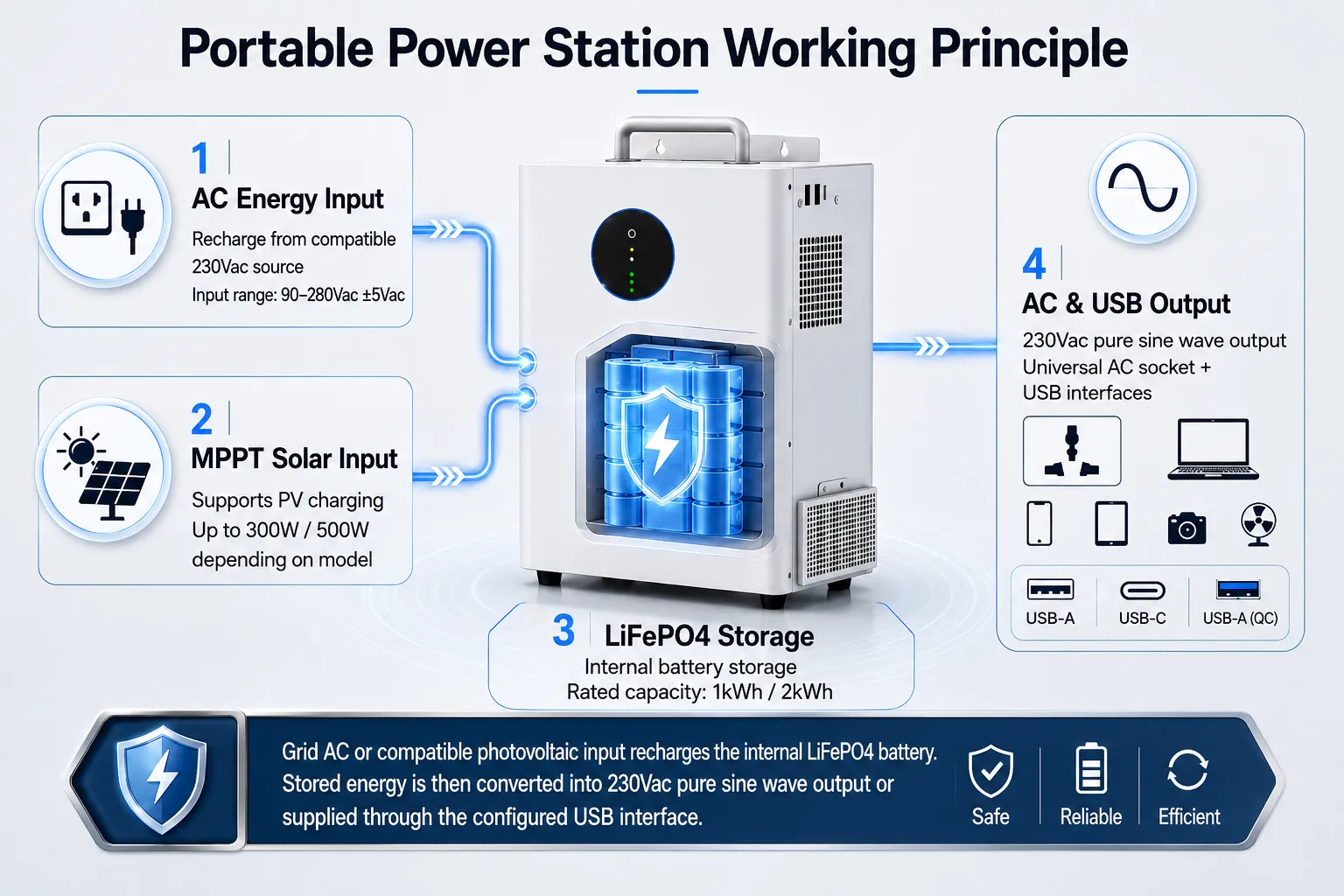

How the Portable Power Station Works
Grid AC or compatible photovoltaic input recharges the internal LiFePO4 battery. Stored energy is then converted into 230Vac pure sine wave output or supplied through the configured USB interface.

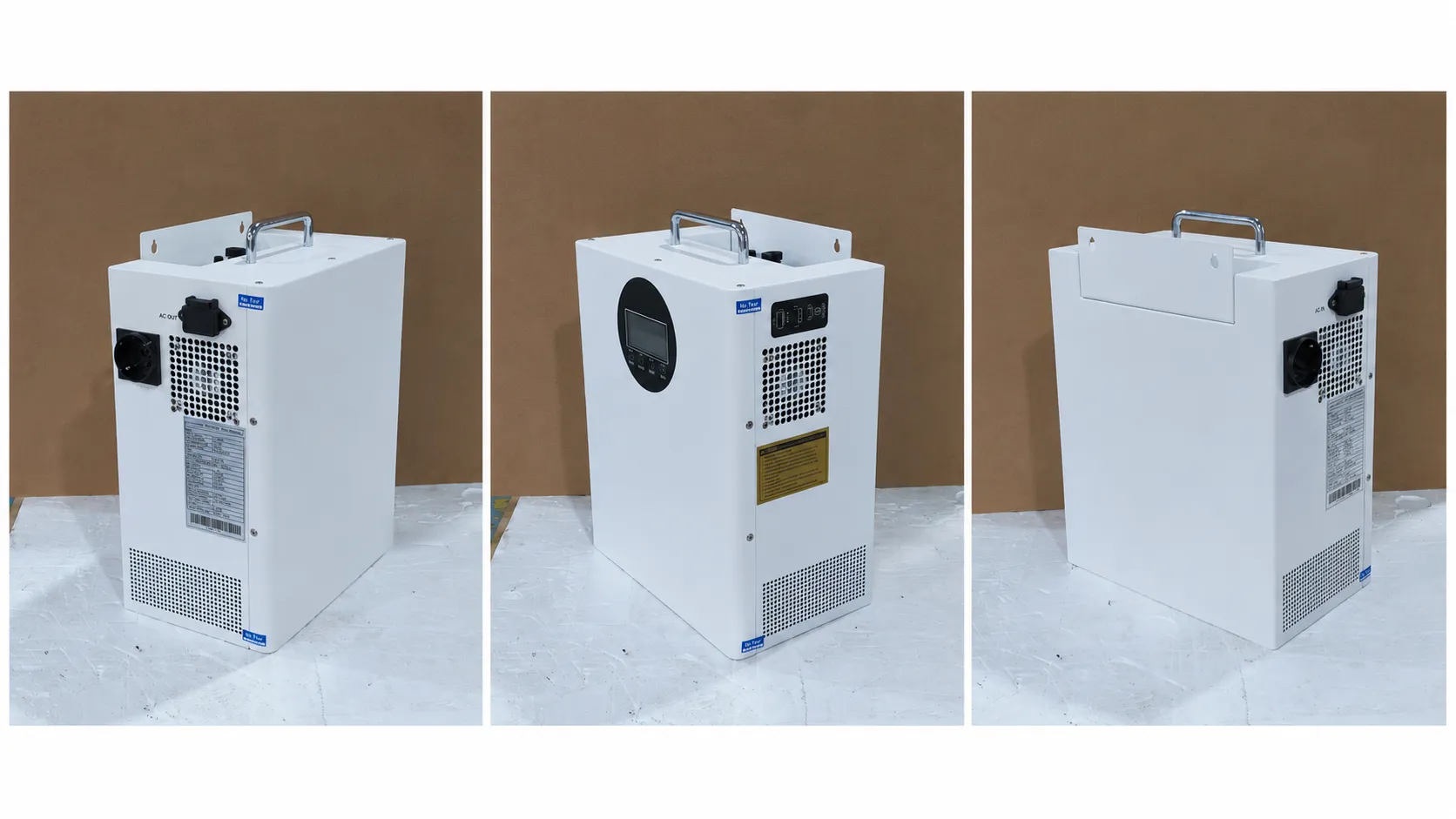

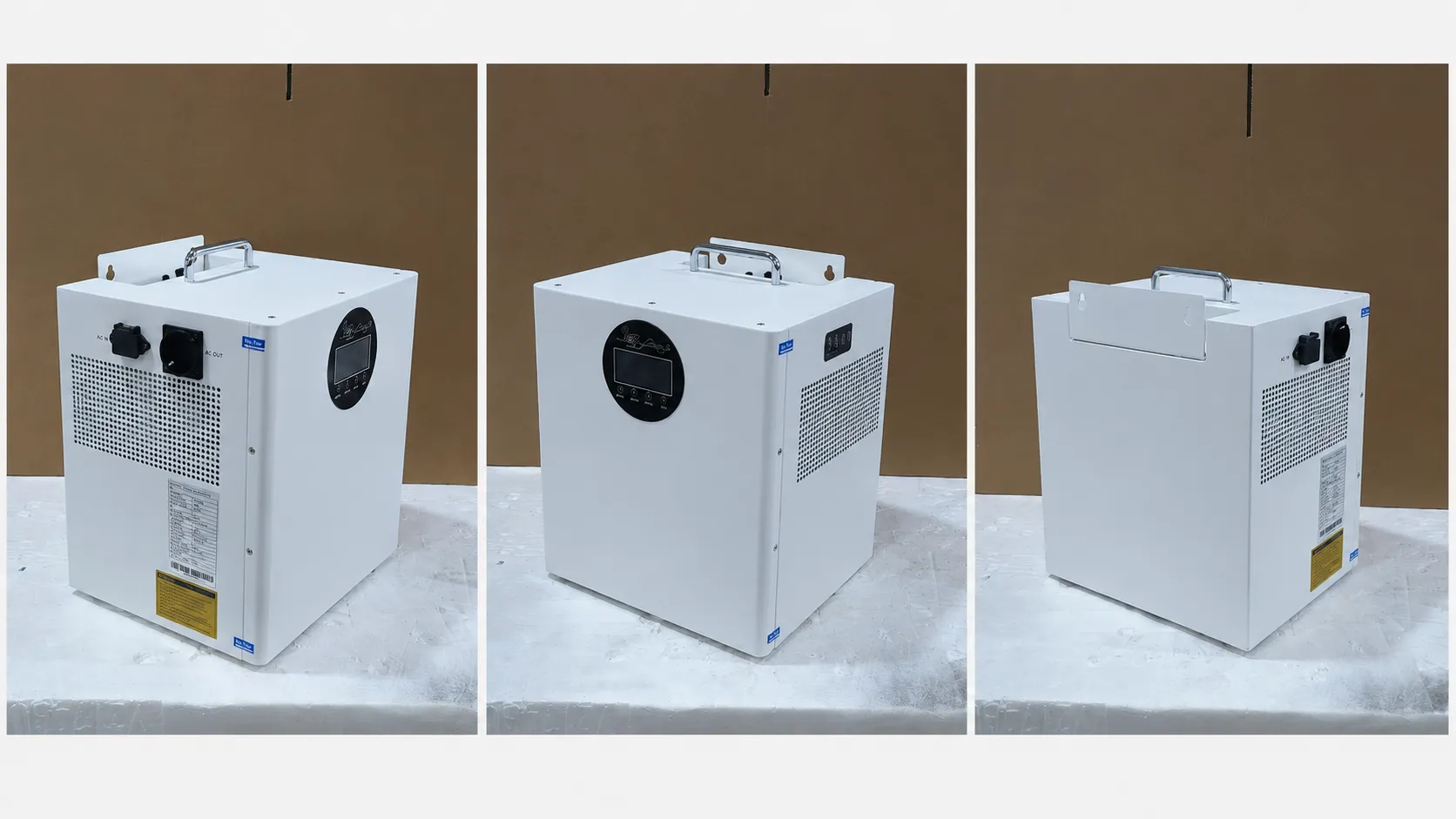

Portable All-In-One Enclosure in Two Sizes
Capacity, output power, dimensions and weight should be selected together according to transport and operating requirements.
310 × 360 × 151mm · About 15kg
Lower-weight configuration for users prioritizing easier movement and compatible loads within 500W.
350 × 270 × 241mm · About 20kg
Higher-energy configuration for longer-duration portable power and compatible loads within 1000W.

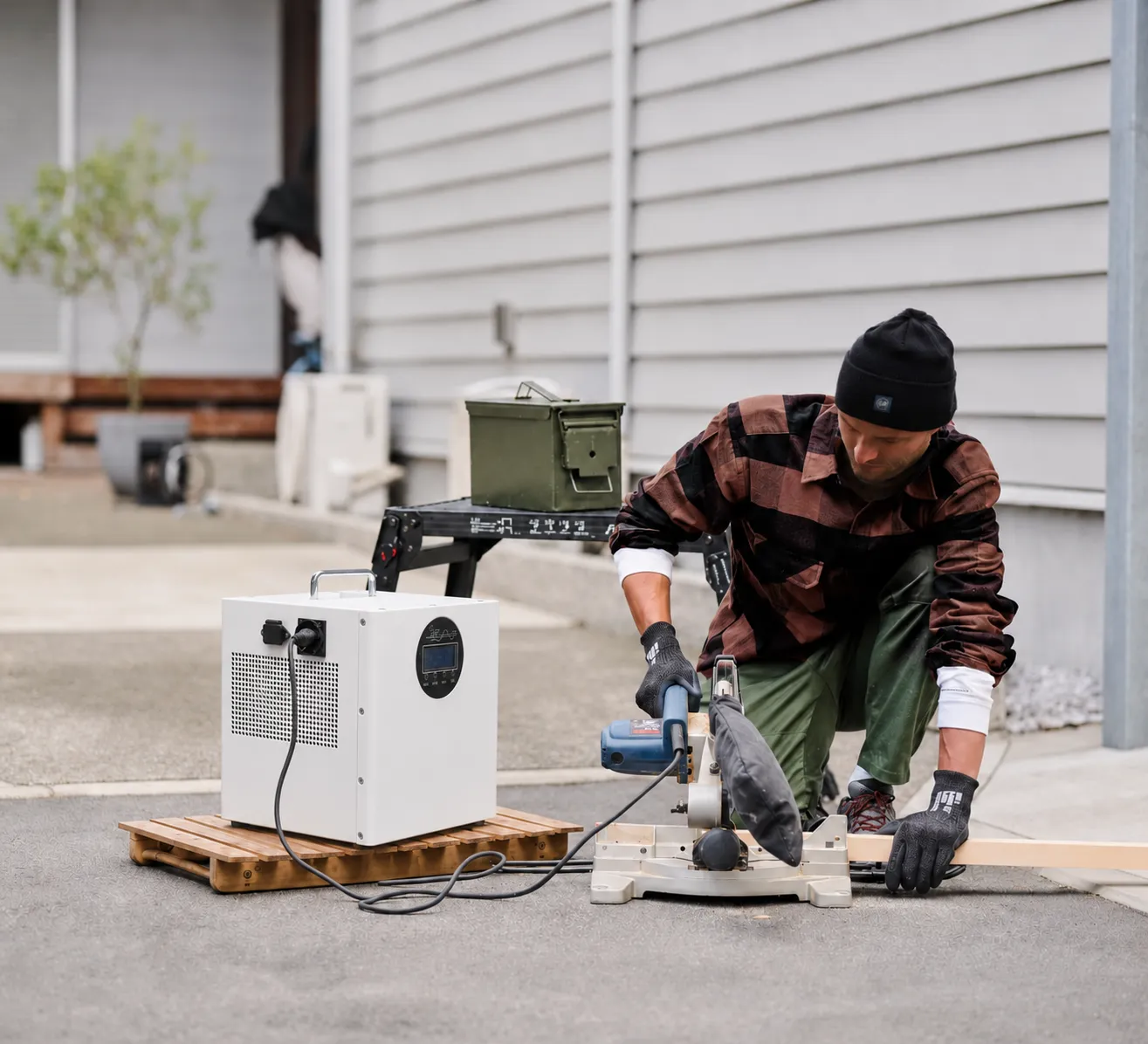

Applications for the AINEGY Portable Power Station
Use the product for selected household, outdoor and professional equipment after checking total load power, startup demand and operating conditions.
Selected Home Backup Loads
Supply compatible lights, routers, fans, televisions and small electronics within the rated output.
Check each appliance's operating and startup power before connection.
Rechargeable Outdoor Power
Provide portable AC and USB power for selected camping equipment, lighting, cameras and communication devices.
Solar charging is available when a compatible PV source is connected.
Stored Power for Essential Electronics
Maintain rechargeable energy for selected communication, lighting and information devices.
No uninterrupted or life-support power claim is made.
Mobile Office and Field Equipment
Support compatible laptops, displays, network equipment, cameras and other professional electronics.
Select the model according to total load and required operating time.
Pure Sine Wave Portable AC Power
Connect selected devices that remain within 500W or 1000W rated continuous output.
High-power heating appliances and large startup loads require separate verification.
Portable Energy Away from Fixed Outlets
Use stored battery power for selected equipment in temporary outdoor operating environments.
Follow the stated temperature, altitude and connection requirements.
LiFePO4 Portable Power Station FAQ
Direct answers for customers comparing battery capacity, AC output, solar input, connected loads and portability.
It is a portable all-in-one power system that combines LiFePO4 battery storage, a pure sine wave AC inverter, AC charging, MPPT solar charging and AC/USB output interfaces. Two configurations are available: 1kWh with 500W AC output and 2kWh with 1000W AC output.
The 1kWh model provides 500W rated AC output, up to 300W PV input and weighs about 15kg. The 2kWh model provides 1000W rated AC output, up to 500W PV input and weighs about 20kg.
Yes. Both models support 230Vac charging and compatible PV charging. The 1kWh model accepts up to 300W PV input with an 11–55V MPPT range and 10A maximum PV current. The 2kWh model accepts up to 500W with a 12–60V MPPT range and 15A maximum PV current.
Check the panel or array open-circuit voltage, operating voltage and current against the selected model's MPPT voltage range and maximum PV input current. The PV connection uses an MC4 interface. Do not connect a PV source outside the stated electrical limits.
It can supply compatible devices whose combined continuous load remains within the model's 500W or 1000W rated AC output. Device startup power, operating power and total simultaneous load must be checked before use.
Yes. Both models provide 230Vac pure sine wave output at a rated frequency of 50Hz ±5%. Equipment compatibility still depends on the appliance's rated power, startup demand and electrical requirements.
When connected to compatible solar panels, the unit can operate as a rechargeable portable solar power system. Solar panels are not described as included in the product specification and should be selected according to the PV input limits.
The specification confirms a USB-A1 output rated at 5V 1A. The product interface diagram also shows USB-2 and Type-C ports, but their voltage, current and charging-protocol ratings are not specified in the current product sheet.
No whole-home power claim is made. It is designed for selected household, outdoor and professional loads within the 500W or 1000W rated output of the chosen model.
The stated operating temperature is -10°C to 40°C, the storage temperature is -15°C to 60°C, and the stated altitude limit is 3000m or below.
Configure Your AINEGY Portable Power Station
Send the devices you need to power, continuous and startup wattage, expected operating time, AC plug requirement, solar panel voltage and current, required USB or Type-C ratings and destination market. AINEGY will review the 1kWh/500W or 2kWh/1000W configuration and compatible charging interfaces.
